Our Machines & Equipments
JCB Backhoe Loader is a product that resonates with trust and is also iconic as it represents the industry. It is the path-breaking features of this machine that have kept us on the top of the leader board. JCB Backhoe Loaders are highly adaptable to different applications and are highly versatile to be used in various construction projects.
| Model | 2DX | 3DX Super | 4DX |
|---|---|---|---|
|
Max. Eng Power kW (hp) |
36.4 (49) |
68 (92) |
68 (92) |
|
Loader Shovel Capacity (cu.m) |
0.6 |
1.0 (6-in-1) |
1.0(6-in-1) |
|
Loader Dump Height (m) |
2.3 |
2.93 (9-7) |
2.93(9-7)
|
|
Excavator Bucket Capacity (cu.m) |
0.18 |
0.30 |
0.32 |
|
Maximum Dig Depth (m) |
3.02 |
5.05 (16-7) |
5.36
|
|
Transmission Drive |
4WD |
4WD |
4WD |

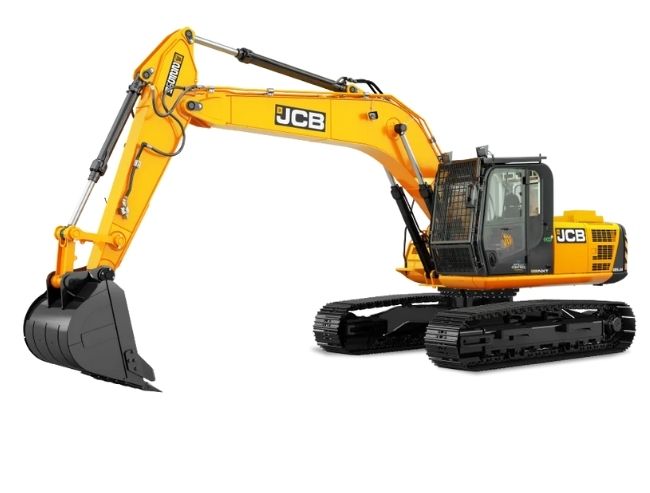

The all-new resilient range of JCB Excavator is built to perform in the most demanding conditions, be it strength, comfort or efficiency – every Excavator is carefully designed to take your success to the next level. Add to this, the range is engineered and designed to suit multiple applications of various business segments.
| Model | JCB 81 | JCB NXT 140 | JCB NXT 225LC M | JCB 345LC HD | JCB 385LC | JCB 130 | JCB NXT 145 QM | JCB NXT 150 | JCB NXT 205 | JCB NXT 245HD LR | JCB NXT 215 LC |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Max. Engine Power kW (hp)
|
57 (76)
|
75 (100)
|
110 (148) |
165 (221)
|
212 (248) |
60 (80) |
75 (100) |
75 (100) |
104 (140) |
104 (140) |
104 (140) |
|
Max. Operating Weight (kg |
8, 050 |
14, 320 |
22,200 |
32, 940 |
37, 300 |
12,800 |
14,500 |
14,700 |
21,250 |
23,850 |
21,500 |
|
Bucket Capacity (m3
) |
0.24 – 0.32 |
0.63 – 0.72 |
0.9 – 1.05 |
1.24 – 1.8 |
1.4 – 2.3 |
0.50 – 0.65 |
0.63 – 0.72 |
0.63 – 0.75 |
0.9 – 1.02 |
0.45 |
0.9 – 1.02 |

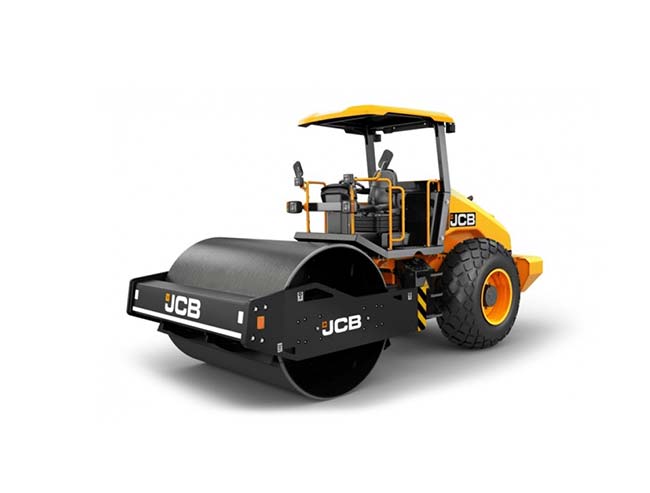

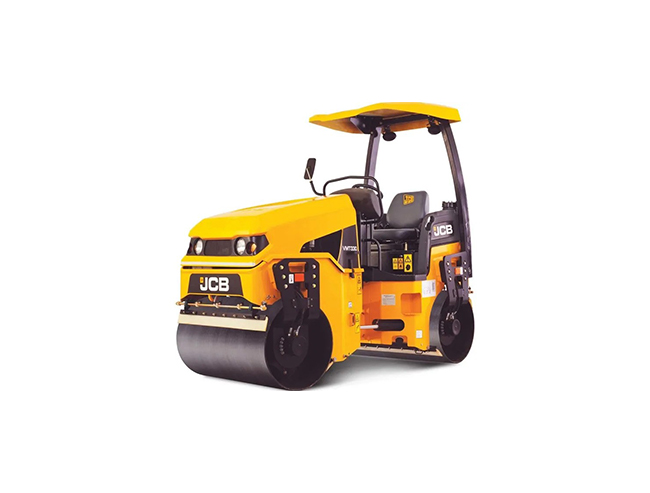

Exclusively designed to cater to the road construction, JCB has got one of the finest range of compactors that offers perfection and precision during the construction of roads.Whether it’s a single drum vibratory compactor or a vibratory tandem roller, all JCB Compactors are remarkably cost-effective and offer excellent productivity.
| Variant Type | Single Drum Vibratory Roller | Vibratory Tandem Roller | |
|---|---|---|---|
|
Model |
JCB116 |
VMT 330 |
VMT 860 |
|
Max. Engine Power kW (hp) |
74.6 (100) |
33 (44) |
56 (76) |
|
Drum Width (mm) |
2,100 |
1,250 |
1,675 |
|
Max. Operating Weight (kg) |
11, 250 |
3, 300 |
8, 750 |

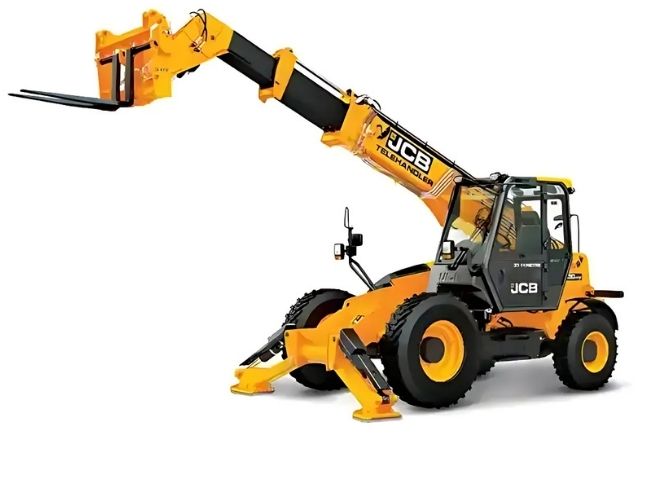

JCB has been pioneering the Telehandlers concept since 1977 and today it’s the world’s leading manufacturer of Telehandlers, offering a range from 7 meter to 20 meter placing height. With a wide range of attachments customized for specific applications in various industries, JCB Telehandlers come with all-new global side engines, designed to enhance reliability, safety and comfort while delivering high productivity at your worksite.
| Model | 530-70 | 530-110 |
|---|---|---|
|
Max. Eng Power kW (hp) |
55 (74) |
55 (74) |
|
Max. Lift Capacity (kg) |
3, 000 |
3, 000 |
|
Max. Lift Height (m) |
7 |
11 |

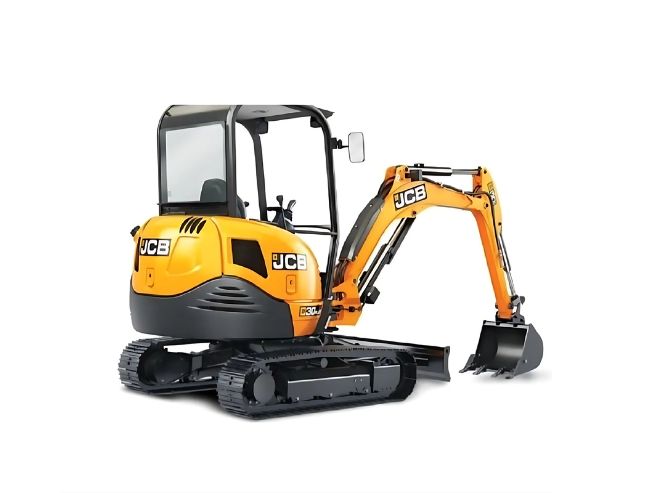

JCB range of Mini Excavators are specially designed to manoeuvre in confined spaces. Due to their robust designs, they give you high performance and savings. They might look mini but do mighty work.
| Model | 30Plus |
|---|---|
|
Max. Eng Power kW (hp) |
18.4 (24.7) |
|
Bucket Capacity (cu.m) |
0.08 |
|
Max. Operating Weight (kg) |
2, 870 |
|
Max Dig Depth (m) |
3.05 |

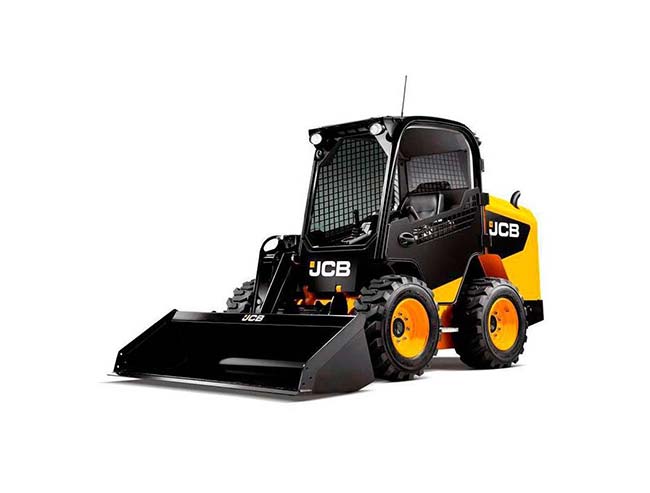

It is the world’s safest Skid Steer Loader with a unique side door entry that makes the entry/exit of the operator hassle-free and safe. Its single-arm also gives excellent all-around visibility. Designed to make swift movements even in the most confined spaces, every skid steer loader comes loaded with a host of attachments that contribute to the versatility of this machine.
| Model | 155 | SSL 135 |
|---|---|---|
|
Max. Engine Power kW (hp) |
44.7 (60) |
50 (37.3) |
|
Loader Shovel Capacity (cu.m) |
0.56 |
0.36 |
|
Loader Dump Height (m) |
2.26 |
2.26 |
|
Operating Capacity (kg) |
703 |
612 |
|
Operating Weight (kg) |
2,900 |
2,700 |

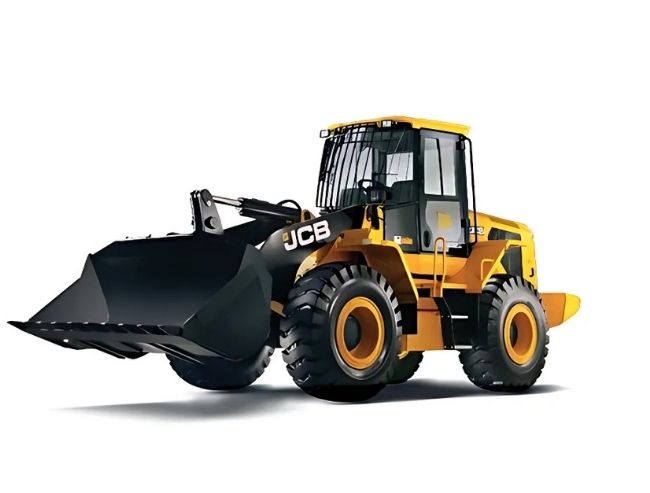

JCB offers some of the best Wheel Loaders that lead to a perfection
driven performance. Capable to perform continuously for hours, these
wheeled loaders work with precision and perfection. Whether it’s
about the transfer of material from stockpiles to trucks, or transport
of material around job sites, Wheeled Loaders by JCB revolutionise
the entire loading process.
| Model | 432 ZX Plus | 455 ZX |
|---|---|---|
|
Max. Eng Power kW (hp) |
112 (150) |
165 (221) |
|
Max. Operating Weight (kg) |
12, 000 |
17, 880 |
|
Standard Shovel Range (cu.m) |
1.8 – 4.1 |
2.8 – 5.0 |
|
Shovel capacity (cu.m) |
3, 650 |
5,585
|

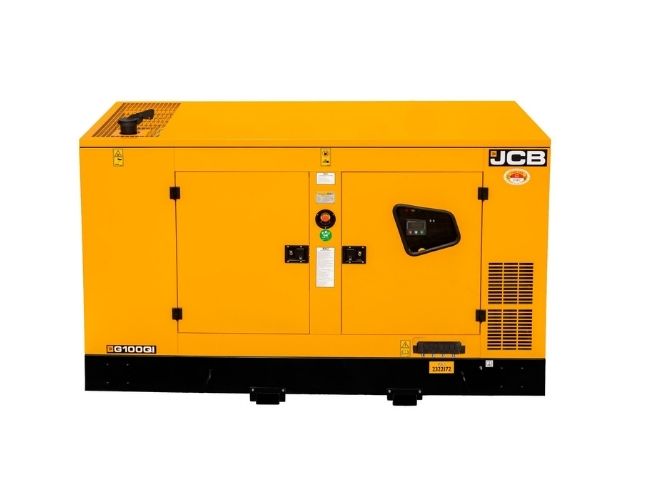

JCB offers an extensive range of high specification diesel generators to meet all your power generation needs. JCB power products provide you with quality solutions that speak of reliability, durability and come with 5 star advantages. The new range of diesel generators are designed to meet your requirements in terms of performance, serviceability, strength, safety, space and with unrivalled aesthetics empowered by world-class JCB after-sales support.
| kVA Range | Model | Engine |
|---|---|---|

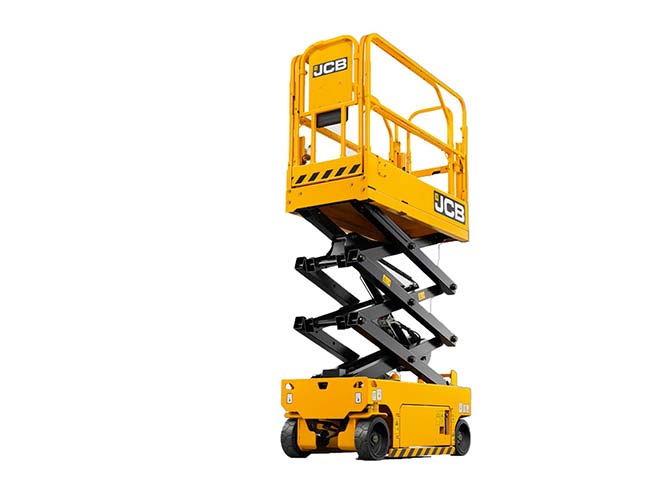

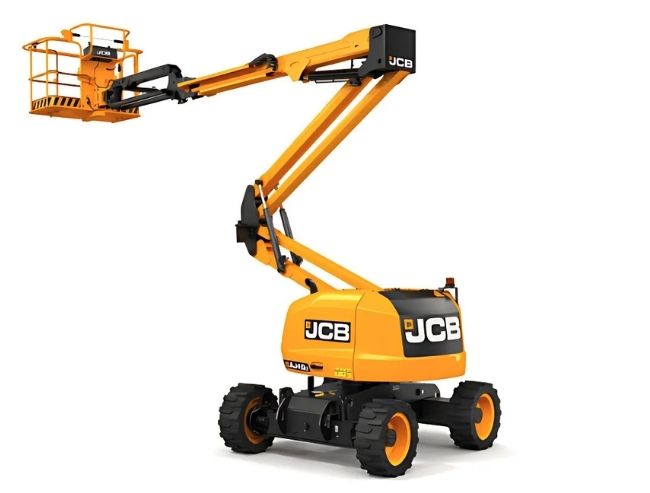

JCB’s Access Platforms, safely manoeuvring vertical challenges worldwide, enhance safety by reducing the likelihood of workplace injuries and equipment damage. Offering unrivalled versatility, the platforms boast excellent operator safety, reduced maintenance costs, and zero emissions, making them ideal for the South Asia market. With an impressive working height of up to 17 ft and expanded working envelope, they provide maximum manoeuvrability for vertical challenges, ensuring no area remains out of reach. Elevate efficiency and productivity with JCB’s finest Access Platforms, the ultimate choice for elevated performance in South Asia.
| Variant Type | Electric Scissor Lift | Articulated Boom Lift |
|---|
